HDC® Hi-Flow Dry Release® Couplings · HDC® Adapters

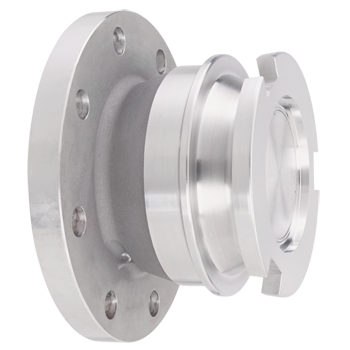

HDC-ADF 4" Aluminum Dry Release Flanged Adapter

Scraped SKU: p2356 2026-06-21 13:50:49

Description

HDC-ADF 4" Aluminum Dry Release Flanged Adapter

Specifications

Size/Type4"
Socket Size164mm
ConnectionANSI B 16.5 2" Class 150
Overall Length134mm
Weight4.9KG
Max Operating Pressure16BAR/232PSI
Max Connection Pressure16BAR/232PSI
Min/Max Operating Temperature-40C to +150C
Body MaterialAL
