HDC® Hi-Flow Dry Release® Couplings · HDC® Adapters

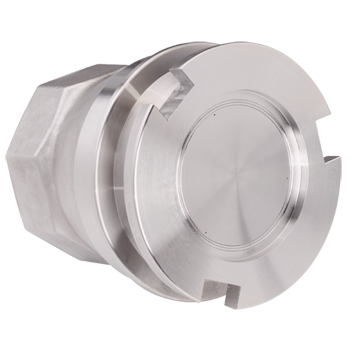

HDC-ADP 4" Stainless Steel Dry Release 316L Adapter

Scraped SKU: p2349 2026-06-21 13:50:49

Description

4" Stainless Steel Dry Release 316L Adapter

Specifications

Size/Type4"
Socket Size164mm
ConnectionBSP ISO 228-G 4
Overall Length156mm
Weight6.9KG
Max Operating Pressure25BAR/363PSI
Max Connection Pressure25BAR/363PSI
Min/Max Operating Temperature-40C to +150C
Body MaterialSS 316L

PDF Documents

No PDF documents.
