HDC® Hi-Flow Dry Release® Couplings · HDC® Adapters

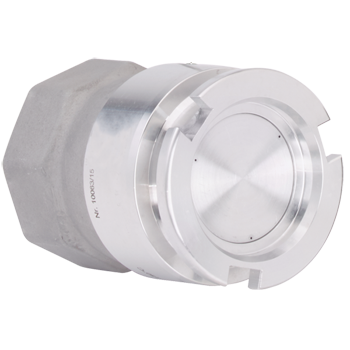

HDC-ADP 1.5" Stainless Steel Dry Release Adapter

Scraped SKU: p2339 2026-06-21 13:50:49

Description

HDC-ADP 1" Stainless Steel Dry Release Adapter 316L

Specifications

Size/Type1.5"
Socket Size70mm
ConnectionBSP ISO 228-G2
Overall Length198mm
Weight1.2KG
Max Operating Pressure25BAR/363PSI
Max Connection Pressure25BAR/363PSI
Min/Max Operating Temperature-40C to +150C
Body MaterialSS 316L

PDF Documents

No PDF documents.
