HDC® Hi-Flow Dry Release® Couplings · HDC® Adapters

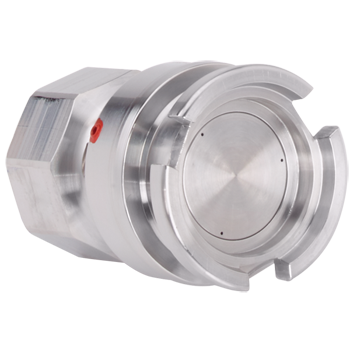

HDC-ADP 1" Stainless Steel Dry Release Adapter

Scraped SKU: p2336 2026-06-21 13:50:49

Description

HDC-ADP 1" Stainless Steel Adapter 316L

Specifications

Size/Type1"
Socket Size65mm
ConnectionBSP ISO 228-G1
Overall Length68.5mm
Weight0.52KG
Max Operating Pressure25BAR/363PSI
Max Connection Pressure25BAR/363PSI
Min/Max Operating Temperature-40C to +150C
Body MaterialSS 316L
